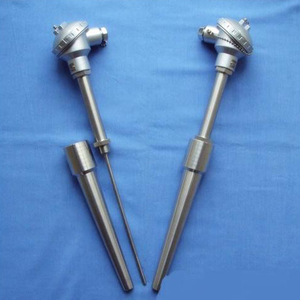

熱套熱電偶/熱電阻
- 產品介紹
1、應用
適合于蒸汽管道、鍋爐及其他對溫度、壓力、流速有所要求的場所。
2、主要技術參數
電氣出口：M20x1.5,NPT1/2
連接尺寸：M20x1.5,NPT1/2
防護等級：IP65
3、型號及規格
| 型號 | 分度號 | 測溫范圍 ℃ | 公稱壓力 | 流速 | 規格 Lxl |
|
WRN-01T WRN2-01T |
K | 0-800 | ≤ 30MPa | ≤ 100m/s | —— |
|
WRE-01T WRE2-01T |
E | 0-600 | |||
|
WZP-01T WZP2-01T |
Pt100 | -200-+500 | |||
|
WRN-624 WRN2-624 |
K | 0-800 | ≤ 30MPa | ≤ 80m/s | 絕緣式 |
|
WRE-624 WRE2-624 |
E | 0-600 | |||
|
WZP-624 WZP2-624 |
Pt100 | -200-+500 | |||
|
WRN-625 WRN2-625 |
K | 0-800 | 接殼式 | ||
|
WRE-625 WRE2-625 |
E | 0-600 | |||
|
WRN-012T WRN2-012T |
K | 0-800 | ≤ 10MPa | —— |
440x230 640x430 840x630 1340x1130 2500x1200 640x430 3000x1500 3500x1700 |
|
WRE-012T WRE2-012T |
E | 0-600 | |||
|
WZP-012T WZP2-012T |
Pt100 | -200-+500 | |||
|
WRN-12AT WRN2-12AT |
K | 0-800 | |||
|
WRE-12AT WRE2-12AT |
E | 0-600 | |||
|
WZP-12AT WZP2-12AT |
Pt100 | -200-+500 | |||
|
WRN-013T WRN2-013T |
K | 0-800 | ≤ 30MPa | ≤ 100m/s |
380x50 430x100 480x150 |
|
WRE-013T WRE2-013T |
E | 0-600 | |||
|
WZP-013T WZP2-013T |
Pt100 | -200-+500 | |||
|
WRN-014T WRN2-014T |
K | 0-800 | ≤ 10MPa |
≤ 80m/s |
280x50 330x100 380x150 430x200 480x250 530x300 |
|
WRE-014T WRE2-014T |
E | 0-600 | |||
|
WZP-014T WZP2-014T |
Pt100 | -200-+500 | |||
|
WRN-015T WRN2-015T |
K | 0-800 | ≤ 10MPa | ___ |
280x50 330x100 380x150 430x200 480x250 530x300 580x350 630x400 |
